Iterative Closest Point with Nonlinear Least Squares

Overview

This project implements iterative closest point (ICP) algorithm with nonlinear least squares optimization on SE3 manifold using the ceres-solver, and Sophus library.

Dataset

3d model data used, Stanford Bunny was obtained from Stanford University Computer Graphics Laboratory.

Dependencies

  1. cmake 3.19
  2. Boost 1.78.0
  3. fmt 8.1.1
  4. Eigen 3.4.0
  5. Sophus (commit:e10eb6e00c)
  6. ceres-solver 2.0.0

How to build

$ git clone https://github.com/raymondngiam/ICP-bunny.git
$ cd ICP-bunny
$ mkdir build && cd build
$ cmake ..
$ make

How to run

  1. To run with a line search type solver, L-BFGS:
$ ./main 1
solverType: LBFGS
SE3 in HTM:
      0.5 -0.866025         0  0.236603
0.866025       0.5         0  0.209808
        0         0         1         0
        0         0         0         1

angle_groundtruth: 1.0472
ax_groundtruth: 0
ay_groundtruth: 0
az_groundtruth: 1
tx_groundtruth: 0.236603
ty_groundtruth: 0.209808
tz_groundtruth: 0

Line count: 35947
35947 points loaded:
  0: f: 9.129942e+02 d: 0.00e+00 g: 1.95e+01 h: 0.00e+00 s: 0.00e+00 e:  0 it: 9.08e-01 tt: 9.12e-01
  1: f: 6.281301e+01 d: 8.50e+02 g: 1.72e+01 h: 2.16e-01 s: 2.76e-05 e:  4 it: 3.67e+00 tt: 4.58e+00
  2: f: 6.225342e+01 d: 5.60e-01 g: 2.21e+01 h: 4.97e-03 s: 4.55e-05 e:  3 it: 2.75e+00 tt: 7.33e+00
  3: f: 8.681656e-01 d: 6.14e+01 g: 2.83e+01 h: 5.45e-01 s: 5.53e-03 e:  3 it: 2.78e+00 tt: 1.01e+01
  4: f: 8.644332e-01 d: 3.73e-03 g: 3.83e+01 h: 4.29e-04 s: 2.99e-05 e:  2 it: 1.86e+00 tt: 1.20e+01
  5: f: 7.937967e-01 d: 7.06e-02 g: 3.25e+01 h: 5.43e-03 s: 1.00e-03 e:  2 it: 1.86e+00 tt: 1.38e+01
  6: f: 7.334784e-01 d: 6.03e-02 g: 4.32e+01 h: 2.45e-02 s: 1.74e-02 e:  1 it: 9.27e-01 tt: 1.48e+01
  7: f: 2.833926e-02 d: 7.05e-01 g: 1.04e+01 h: 5.18e-02 s: 5.55e-01 e:  2 it: 1.86e+00 tt: 1.66e+01
  8: f: 9.642741e-05 d: 2.82e-02 g: 5.17e-01 h: 1.27e-02 s: 1.00e+00 e:  1 it: 9.26e-01 tt: 1.76e+01
  9: f: 8.364150e-07 d: 9.56e-05 g: 4.91e-02 h: 7.35e-04 s: 1.00e+00 e:  1 it: 9.27e-01 tt: 1.85e+01
  10: f: 5.569570e-10 d: 8.36e-07 g: 1.77e-03 h: 6.24e-05 s: 1.00e+00 e:  1 it: 9.30e-01 tt: 1.94e+01
  11: f: 8.765438e-13 d: 5.56e-10 g: 1.40e-04 h: 1.98e-06 s: 1.00e+00 e:  1 it: 9.27e-01 tt: 2.03e+01

Solver Summary (v 2.0.0-eigen-(3.4.0)-lapack-suitesparse-(5.7.1)-cxsparse-(3.2.0)-eigensparse-no_openmp)

                                    Original                  Reduced
Parameter blocks                            1                        1
Parameters                                  7                        7
Effective parameters                        6                        6
Residual blocks                         35947                    35947
Residuals                              107841                   107841

Minimizer                         LINE_SEARCH
Line search direction              LBFGS (20)
Line search type                  CUBIC WOLFE

                                        Given                     Used
Threads                                     1                        1

Cost:
Initial                          9.129942e+02
Final                            7.074045e-18
Change                           9.129942e+02

Minimizer iterations                       12
Line search steps                          22

Time (in seconds):
Preprocessor                         0.003599

  Residual only evaluation           0.000000 (0)
    Line search cost evaluation      0.000000
  Jacobian & residual evaluation    21.265959 (23)
    Line search gradient evaluation   20.357859
  Line search polynomial minimization  0.000063
Minimizer                           21.267511

Postprocessor                        0.001298
Total                               21.272409

Termination:                      CONVERGENCE (Parameter tolerance reached. Relative step_norm: 6.979446e-08 <= 1.000000e-06.)


        Initial         Optimized       GroundTruth
angle   0.0000          1.0472          1.0472
axis.x  0.0000          -0.0000         0.0000
axis.y  0.0000          0.0000          0.0000
axis.z  0.0000          1.0000          1.0000
tx      0.0000          0.2366          0.2366
ty      0.0000          0.2098          0.2098
tz      0.0000          -0.0000         0.0000

Visualization of the optimization progress is as shown below (the visualization was generated in Unity using the optimized pose logged in each iteration).

  1. To run with trust region type solver, Levenberg-Marquadt:
$ ./main 2
solverType: LM
SE3 in HTM:
      0.5 -0.866025         0  0.236603
0.866025       0.5         0  0.209808
        0         0         1         0
        0         0         0         1

angle_groundtruth: 1.0472
ax_groundtruth: 0
ay_groundtruth: 0
az_groundtruth: 1
tx_groundtruth: 0.236603
ty_groundtruth: 0.209808
tz_groundtruth: 0

Line count: 35947
35947 points loaded:
iter      cost      cost_change  |gradient|   |step|    tr_ratio  tr_radius  ls_iter  iter_time  total_time
  0  9.129942e+02    0.00e+00    1.95e+01   0.00e+00   0.00e+00  1.00e+04        0    1.77e+00    1.79e+00
  1  1.535524e+02    7.59e+02    2.34e+00   5.59e-01   8.46e-01  1.49e+04        1    1.15e+00    2.94e+00
  2  1.346057e+00    1.52e+02    6.66e+00   1.06e-01   9.91e-01  4.48e+04        1    1.11e+00    4.05e+00
  3  1.092951e-06    1.35e+00    2.41e-01   9.01e-03   1.00e+00  1.35e+05        1    1.08e+00    5.13e+00
  4  2.719865e-15    1.09e-06    2.01e-06   1.02e-05   1.00e+00  4.04e+05        1    1.11e+00    6.23e+00

Solver Summary (v 2.0.0-eigen-(3.4.0)-lapack-suitesparse-(5.7.1)-cxsparse-(3.2.0)-eigensparse-no_openmp)

                                    Original                  Reduced
Parameter blocks                            1                        1
Parameters                                  7                        7
Effective parameters                        6                        6
Residual blocks                         35947                    35947
Residuals                              107841                   107841

Minimizer                        TRUST_REGION

Sparse linear algebra library    SUITE_SPARSE
Trust region strategy     LEVENBERG_MARQUARDT

                                        Given                     Used
Linear solver          SPARSE_NORMAL_CHOLESKY   SPARSE_NORMAL_CHOLESKY
Threads                                     1                        1
Linear solver ordering              AUTOMATIC                        1

Cost:
Initial                          9.129942e+02
Final                            2.719865e-15
Change                           9.129942e+02

Minimizer iterations                        5
Successful steps                            5
Unsuccessful steps                          0

Time (in seconds):
Preprocessor                         0.022519

  Residual only evaluation           0.410349 (5)
  Jacobian & residual evaluation     5.839978 (5)
  Linear solver                      0.024876 (5)
Minimizer                            6.291506

Postprocessor                        0.001212
Total                                6.315238

Termination:                      CONVERGENCE (Parameter tolerance reached. Relative step_norm: 3.653964e-09 <= 1.000000e-06.)


        Initial         Optimized       GroundTruth
angle   0.0000          1.0472          1.0472
axis.x  0.0000          -0.0000         0.0000
axis.y  0.0000          0.0000          0.0000
axis.z  0.0000          1.0000          1.0000
tx      0.0000          0.2366          0.2366
ty      0.0000          0.2098          0.2098
tz      0.0000          -0.0000         0.0000

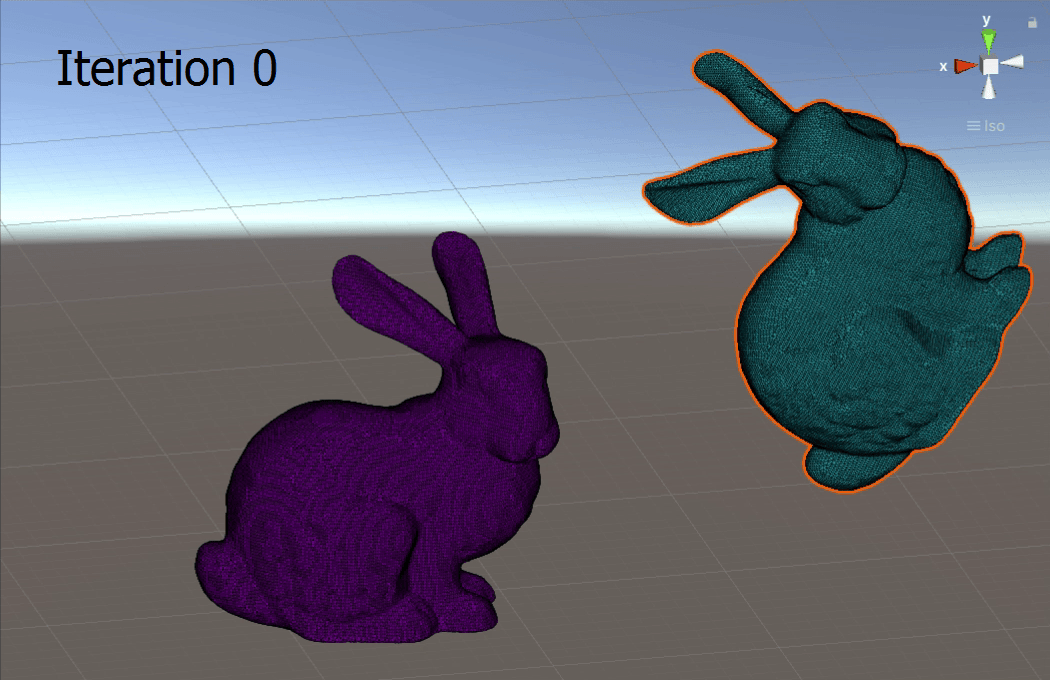

Visualization of the optimization progress is as shown below (the visualization was generated in Unity using the optimized pose logged in each iteration).

Implementation Details

Full src: main.cpp

Sophus Representation of SE3 with Unit Quaternion and Vector

Rigid transformation of a point in homogeneous transformation matrix (HTM) take the following form,

[p′1]=[Rt0001][pxpypz1]\quad \begin{bmatrix} \\ \mathbf{p'} \\ \\1\end{bmatrix} = \begin{bmatrix}\\ \mathbf{R} & \mathbf{t}\\ \\ \begin{matrix}0 & 0 & 0\end{matrix} & 1 \end{bmatrix} \begin{bmatrix}p_x \\ p_y \\ p_z \\ 1 \end{bmatrix}

where R∈R3×3\mathbf{R} \in \mathbb{R}^{3\times 3} and t∈R3\mathbf{t} \in \mathbb{R}^{3}

Equivalently, a Sophus::SE3<T> object represents rigid transformation of a point with a quaternion multiplication, followed by a vector addition.

p′=qpq∗+t\quad \mathbf{p' = qpq^* + t}

where q\mathbf{q} is an unit quaternion corresponding to R\mathbf{R}, and q∗\mathbf{q}^* is a quaternion conjugate.

Thus, a Sophus::SE3<T> object has 7 parameters, namely {qx,qy,qz,qw,tx,ty,tz}\{q_x,q_y,q_z,q_w,t_x,t_y,t_z\}.

Ceres Residual Definition with Sophus SE3 Object

struct CostFunctor {
    CostFunctor(const Vector3d& target,
                const Vector3d& input):
        input(input), target(target){}

    template <typename T>
    bool operator()(T const * const se3_raw, T* residual_raw) const {
        Eigen::Map<Sophus::SE3<T> const> const se3(se3_raw);
        Eigen::Map<Eigen::Vector<T,3>> residual(residual_raw);
        residual = target - se3*input;
        return true;
    }

    Vector3d input;
    Vector3d target;
};

In Ceres, when we define a class with a templated operator() that computes the cost function in terms of the template parameter T, we get an auto differentiated cost function.

The autodiff framework substitutes appropriate Jet objects for T in order to compute the derivative when necessary.

Since the inner representation of Sophus::SE3<T> type is with a unit quaternion (4 parameters) and a R3\mathbb{R}^3 vector (3 parameters), it has 7 parameters. The derivative or Jacobian obtained takes the following form:

Ji=[∂Li∂qx∂Li∂qy∂Li∂qz∂Li∂qw∂Li∂tx∂Li∂ty∂Li∂tz]\mathbf{J_i} = \begin{bmatrix}\frac{\partial L_i}{\partial q_x} & \frac{\partial L_i}{\partial q_y} & \frac{\partial L_i}{\partial q_z} & \frac{\partial L_i}{\partial q_w} & \frac{\partial L_i}{\partial t_x} & \frac{\partial L_i}{\partial t_y} & \frac{\partial L_i}{\partial t_z}\end{bmatrix}

Ceres Local Parameterization of SE3 Manifold into Tangent Space

At each point on the SE3 manifold there is a linear space that is tangent to the manifold. There are two reasons tangent spaces are interesting:

  1. They are Euclidean spaces, so the usual vector space operations apply there, which makes numerical operations easy.

  2. Movement in the tangent space translate into movements along the manifold, vice versa. They are related by the exponential and logarithmic map of SE3.

Besides the mathematical niceness, modeling manifold valued quantities correctly and paying attention to their geometry has practical benefits too:

  1. It naturally constrains the quantity to the manifold through out the optimization. Freeing the user from hacks like quaternion normalization.

  2. It reduces the dimension of the optimization problem to its natural size.

The LocalParameterization interface in Ceres allows the user to define and associate with parameter blocks the manifold that they belong to. It does so by defining the Plus (⊕\oplus) operation and its Jacobian (i.e. derivative with respect to Δ\Delta at Δ=0\Delta = 0).

⊕\oplus Operation

For SE3 manifolds, the tangent space is given by the twist coordinate,

ξ=[ρw]\quad \bm{\xi} = \begin{bmatrix}\bm{\rho}\\\bm{w}\end{bmatrix}

In homogeneous transformation matrix form (HTM), small perturbation (or i.e. the ⊕\oplus operation) in se\mathfrak{se}3 is related SE3 space as follows:

exp⁡((ξ+Δξ)∧)=exp⁡((Δξ)∧)exp⁡(ξ^)\exp ((\bm{\xi + \Delta \xi})^\wedge) = \exp ((\bm{\Delta \xi})^\wedge) \exp (\bm{\hat{\xi}}) \qquad left multiply

exp⁡((ξ+Δξ)∧)=exp⁡(ξ^)exp⁡((Δξ)∧)\exp ((\bm{\xi + \Delta \xi})^\wedge) = \exp (\bm{\hat{\xi}})\exp ((\bm{\Delta \xi})^\wedge) \qquad right multiply

Let's consider the right multiply case, as this choice results in a derivative that is visually neat, i.e. partial derivative of t\mathbf{t} is only dependent on ρ\bm{\rho}; and partial derivative of q\mathbf{q} is only dependent on w\bm{w}.

Jacobian

exp⁡((ξ+Δξ)∧)=exp⁡(ξ^)exp⁡((Δξ)∧)\exp ((\bm{\xi + \Delta \xi})^\wedge) = \exp (\bm{\hat{\xi}})\exp ((\bm{\Delta \xi})^\wedge) \qquad right multiply

≈exp⁡(ξ^)(I+(Δξ)∧)\qquad \qquad \qquad \qquad \approx \exp (\bm{\hat{\xi}})(\mathbf{I} + (\bm{\Delta \xi})^\wedge) \qquad linearized at Δξ≈0\bm{\Delta \xi} \approx 0 taking only first order term in exponential series expansion

≈H(I+(Δξ)∧)\qquad \qquad \qquad \qquad \approx \mathbf{H}(\mathbf{I} + (\bm{\Delta \xi})^\wedge)

where

H=[exp⁡(w)Jρ01]=[Rt01]\mathbf{H} = \begin{bmatrix} \exp (\bm{w}) & \mathbf{J}\bm{\rho}\\ \mathbf{0} & 1 \end{bmatrix} = \begin{bmatrix} \mathbf{R} & \mathbf{t}\\ \mathbf{0} & 1 \end{bmatrix}

J\mathbf{J} is left Jacobian of SO(3).

Taking the derivative,

∂exp⁡((ξ+Δξ)∧)∂Δξ≈∂∂ΔξH(Δξ)∧\frac{\partial \exp ((\bm{\xi + \Delta \xi})^\wedge)}{\partial \bm{\Delta \xi}}\approx \frac{\partial}{\partial \bm{\Delta \xi}} \mathbf{H}(\bm{\Delta \xi})^\wedge

≈∂∂ΔξH[0−ΔwzΔwyΔρxΔwz0−ΔwxΔρy−ΔwyΔwx0Δρz0000]\qquad \qquad \qquad \approx \frac{\partial}{\partial \bm{\Delta \xi}} \mathbf{H}\begin{bmatrix}0&-\Delta w_z&\Delta w_y&\Delta \rho_x\\ \Delta w_z&0&-\Delta w_x&\Delta \rho_y\\ -\Delta w_y&\Delta w_x&0&\Delta \rho_z\\ 0&0&0&0 \end{bmatrix}

≈∂∂Δξ[qw2+qx2−qy2−qz2−2qwqz+2qxqy2qwqy+2qxqztx2qwqz+2qxqyqw2+qy2−qx2−qz2−2qwqx+2qyqzty−2qwqy+2qxqz2qwqx+2qyqzqw2+qz2−qx2−qy2tz0001][0−ΔwzΔwyΔρxΔwz0−ΔwxΔρy−ΔwyΔwx0Δρz0000]\qquad \qquad \qquad \approx \frac{\partial}{\partial \bm{\Delta \xi}} \begin{bmatrix}q_w^2 + q_x^2 - q_y^2 - q_z^2 & -2q_wq_z + 2q_xq_y & 2q_wq_y + 2q_xq_z & t_x\\ 2q_wq_z + 2q_xq_y & q_w^2 + q_y^2 - q_x^2 - q_z^2 & -2q_wq_x + 2q_yq_z & t_y\\ -2q_wq_y + 2q_xq_z & 2q_wq_x + 2q_yq_z & q_w^2 + q_z^2 - q_x^2 - q_y^2 & t_z\\ 0 & 0 & 0 & 1 \end{bmatrix}\begin{bmatrix}0&-\Delta w_z&\Delta w_y&\Delta \rho_x\\ \Delta w_z&0&-\Delta w_x&\Delta \rho_y\\ -\Delta w_y&\Delta w_x&0&\Delta \rho_z\\ 0&0&0&0 \end{bmatrix}

∂tx∂Δρx=(qw2+qx2−qy2−qz2)∂tx∂Δwx=0\frac{\partial t_x}{\partial \Delta \rho_x} = (q_w^2 + q_x^2 - q_y^2 - q_z^2) \qquad \qquad \frac{\partial t_x}{\partial \Delta w_x} = 0

∂tx∂Δρy=(−2qwqz+2qxqy)∂tx∂Δwy=0\frac{\partial t_x}{\partial \Delta \rho_y} = (-2q_wq_z + 2q_xq_y) \qquad \qquad \frac{\partial t_x}{\partial \Delta w_y} = 0

∂tx∂Δρz=(2qwqy+2qxqz)∂tx∂Δwz=0\frac{\partial t_x}{\partial \Delta \rho_z} = (2q_wq_y + 2q_xq_z) \qquad \qquad \frac{\partial t_x}{\partial \Delta w_z} = 0

∂ty∂Δρx=(2qwqz+2qxqy)∂ty∂Δwx=0\frac{\partial t_y}{\partial \Delta \rho_x} = (2q_wq_z + 2q_xq_y) \qquad \qquad \frac{\partial t_y}{\partial \Delta w_x} = 0

∂ty∂Δρy=(qw2+qy2−qx2−qz2)∂ty∂Δwy=0\frac{\partial t_y}{\partial \Delta \rho_y} = (q_w^2 + q_y^2 - q_x^2 - q_z^2) \qquad \qquad \frac{\partial t_y}{\partial \Delta w_y} = 0

∂ty∂Δρz=(−2qwqx+2qyqz)∂ty∂Δwz=0\frac{\partial t_y}{\partial \Delta \rho_z} = (-2q_wq_x + 2q_yq_z) \qquad \qquad \frac{\partial t_y}{\partial \Delta w_z} = 0

∂tz∂Δρx=(−2qwqy+2qxqz)∂tz∂Δwx=0\frac{\partial t_z}{\partial \Delta \rho_x} = (-2q_wq_y + 2q_xq_z) \qquad \qquad \frac{\partial t_z}{\partial \Delta w_x} = 0

∂tz∂Δρy=(2qwqx+2qyqz)∂tz∂Δwy=0\frac{\partial t_z}{\partial \Delta \rho_y} = (2q_wq_x + 2q_yq_z) \qquad \qquad \frac{\partial t_z}{\partial \Delta w_y} = 0

∂tz∂Δρz=(qw2+qz2−qx2−qy2)∂tz∂Δwz=0\frac{\partial t_z}{\partial \Delta \rho_z} = (q_w^2 + q_z^2 - q_x^2 - q_y^2) \qquad \qquad \frac{\partial t_z}{\partial \Delta w_z} = 0

If we were to represent the SO(3) transformation in quaternion form

exp⁡(w^)→q\exp (\bm{\hat{w}}) \rightarrow \mathbf{q}

where

q=(cos⁡(∣∣w∣∣2),sin⁡(∣∣w∣∣2)w∣∣w∣∣)\mathbf{q} = (\cos (\frac{||\mathbf{w}||}{2}), \sin (\frac{||\mathbf{w}||}{2})\frac{\mathbf{w}}{||\mathbf{w}||})

exp⁡((w+Δw)∧)→q.exp⁡(12Δw)\exp ((\bm{w + \Delta w})^\wedge) \rightarrow \mathbf{q} . \exp (\frac{1}{2}\bm{\Delta w}) \qquad right multiply

≈q.(1+12Δw)\qquad \qquad \qquad \qquad \approx \mathbf{q} . (1 + \frac{1}{2}\bm{\Delta w}) \qquad linearized at Δw≈0\bm{\Delta w} \approx 0 taking only first order term in exponential series expansion

≈(qw,[qxqyqz]).(1,[0.5Δwx0.5Δwy0.5Δwz])\qquad \qquad \qquad \qquad \approx (q_w,\begin{bmatrix}q_x\\ q_y\\ q_z\end{bmatrix}) . (1,\begin{bmatrix}0.5\Delta w_x\\ 0.5\Delta w_y\\ 0.5\Delta w_z\end{bmatrix})

∂q.exp⁡(12Δw)∂Δw≈∂∂Δw(qw,[qxqyqz]).(1,[0.5Δwx0.5Δwy0.5Δwz])\frac{\partial \mathbf{q} . \exp (\frac{1}{2}\bm{\Delta w})}{\partial \bm{\Delta w}}\approx \frac{\partial}{\partial \bm{\Delta w}} (q_w,\begin{bmatrix}q_x\\ q_y\\ q_z\end{bmatrix}) . (1,\begin{bmatrix}0.5\Delta w_x\\ 0.5\Delta w_y\\ 0.5\Delta w_z\end{bmatrix})

≈∂∂Δw(qw−0.5qxΔwx−0.5qyΔwy−0.5qzΔwz,[qx+0.5qwΔwx−0.5qzΔwy+0.5qyΔwzqy+0.5qzΔwx+0.5qwΔwy−0.5qxΔwzqz−0.5qyΔwx+0.5qxΔwy+0.5qwΔwz])\qquad \qquad \approx \frac{\partial}{\partial \bm{\Delta w}}(q_w-0.5q_x\Delta w_x-0.5q_y\Delta w_y-0.5q_z\Delta w_z, \begin{bmatrix} q_x + 0.5q_w\Delta w_x - 0.5q_z\Delta w_y + 0.5q_y\Delta w_z \\ q_y + 0.5q_z\Delta w_x + 0.5q_w\Delta w_y - 0.5q_x\Delta w_z\\ q_z - 0.5q_y\Delta w_x + 0.5q_x\Delta w_y + 0.5q_w\Delta w_z \end{bmatrix})

∂qx∂Δwx=0.5qw∂qx∂Δwy=−0.5qz∂qx∂Δwz=0.5qy∂qx∂Δρx=0∂qx∂Δρy=0∂qx∂Δρz=0\frac{\partial q_x}{\partial \Delta w_x} = 0.5 q_w \quad \frac{\partial q_x}{\partial \Delta w_y} = -0.5 q_z \quad \frac{\partial q_x}{\partial \Delta w_z} = 0.5 q_y \quad \frac{\partial q_x}{\partial \Delta \rho_x} = 0 \quad \frac{\partial q_x}{\partial \Delta \rho_y} = 0 \quad \frac{\partial q_x}{\partial \Delta \rho_z} = 0

∂qy∂Δwx=0.5qz∂qy∂Δwy=0.5qw∂qy∂Δwz=−0.5qx∂qy∂Δρx=0∂qy∂Δρy=0∂qy∂Δρz=0\frac{\partial q_y}{\partial \Delta w_x} = 0.5 q_z \quad \frac{\partial q_y}{\partial \Delta w_y} = 0.5 q_w \quad \frac{\partial q_y}{\partial \Delta w_z} = -0.5 q_x \quad \frac{\partial q_y}{\partial \Delta \rho_x} = 0 \quad \frac{\partial q_y}{\partial \Delta \rho_y} = 0 \quad \frac{\partial q_y}{\partial \Delta \rho_z} = 0

∂qz∂Δwx=−0.5qy∂qz∂Δwy=0.5qx∂qz∂Δwz=0.5qw∂qz∂Δρx=0∂qz∂Δρy=0∂qz∂Δρz=0\frac{\partial q_z}{\partial \Delta w_x} = -0.5 q_y \quad \frac{\partial q_z}{\partial \Delta w_y} = 0.5 q_x \quad \frac{\partial q_z}{\partial \Delta w_z} = 0.5 q_w \quad \frac{\partial q_z}{\partial \Delta \rho_x} = 0 \quad \frac{\partial q_z}{\partial \Delta \rho_y} = 0 \quad \frac{\partial q_z}{\partial \Delta \rho_z} = 0

∂qw∂Δwx=−0.5qx∂qw∂Δwy=−0.5qy∂qw∂Δwz=−0.5qz∂qw∂Δρx=0∂qz∂Δρy=0∂qz∂Δρz=0\frac{\partial q_w}{\partial \Delta w_x} = -0.5 q_x \quad \frac{\partial q_w}{\partial \Delta w_y} = -0.5 q_y \quad \frac{\partial q_w}{\partial \Delta w_z} = -0.5 q_z \quad \frac{\partial q_w}{\partial \Delta \rho_x} = 0 \quad \frac{\partial q_z}{\partial \Delta \rho_y} = 0 \quad \frac{\partial q_z}{\partial \Delta \rho_z} = 0

The Jacobian for this SE3 local parameterization has the size of [7×6][7 \times 6]. Taking the form:

[∂qx∂Δρx∂qx∂Δρy∂qx∂Δρz∂qx∂Δwx∂qx∂Δwy∂qx∂Δwz∂qy∂Δρx∂qy∂Δρy∂qy∂Δρz∂qy∂Δwx∂qy∂Δwy∂qy∂Δwz............∂tz∂Δρx∂tz∂Δρy∂tz∂Δρz∂tz∂Δwx∂tz∂Δwy∂tz∂Δwz]\begin{bmatrix}\frac{\partial q_x}{\partial \Delta \rho_x} & \frac{\partial q_x}{\partial \Delta \rho_y} & \frac{\partial q_x}{\partial \Delta \rho_z} & \frac{\partial q_x}{\partial \Delta w_x} & \frac{\partial q_x}{\partial \Delta w_y} & \frac{\partial q_x}{\partial \Delta w_z} \\ \frac{\partial q_y}{\partial \Delta \rho_x} & \frac{\partial q_y}{\partial \Delta \rho_y} & \frac{\partial q_y}{\partial \Delta \rho_z} & \frac{\partial q_y}{\partial \Delta w_x} & \frac{\partial q_y}{\partial \Delta w_y} & \frac{\partial q_y}{\partial \Delta w_z} \\ &&... \\ &&... \\ &&... \\ &&... \\ \frac{\partial t_z}{\partial \Delta \rho_x} & \frac{\partial t_z}{\partial \Delta \rho_y} & \frac{\partial t_z}{\partial \Delta \rho_z} & \frac{\partial t_z}{\partial \Delta w_x} & \frac{\partial t_z}{\partial \Delta w_y} & \frac{\partial t_z}{\partial \Delta w_z} \\ \end{bmatrix}

The derivative of the residuals' cost w.r.t. the Sophus::SE3<T> type's parameters is [n×7][n \times 7], obtained from the Ceres autodiff framework.

Multiplying the residual Jacobian to the local parameterization Jacobian ([n×7].[7×6]=[n×6][n \times 7] . [7 \times 6] = [n \times 6]) would yield the derivative w.r.t. the tangent space parameters, i.e. the twist coordinates. These are then used in the update steps in the nonlinear least squares iterations.

The following code snippet shows how to implement the ceres::LocalParameterization class with parameter block that make use of Sophus::SE3<T>.

class LocalParameterizationSE3 : public ceres::LocalParameterization {
    public:
        virtual ~LocalParameterizationSE3() {}

        // SE3 plus operation for Ceres
        //
        //  T * exp(x)
        //
        virtual bool Plus(double const* T_raw, double const* delta_raw,
                          double* T_plus_delta_raw) const {
            Eigen::Map<Sophus::SE3d const> const T(T_raw);
            Eigen::Map<Sophus::Vector6d const> const delta(delta_raw);
            Eigen::Map<SE3d> T_plus_delta(T_plus_delta_raw);
            T_plus_delta = T * SE3d::exp(delta);
            return true;
        }

        // Jacobian of SE3 plus operation for Ceres
        //
        // Dx T * exp(x)  with  x=0
        //
        virtual bool ComputeJacobian(double const* T_raw,
                                     double* jacobian_raw) const {
            Eigen::Map<Sophus::SE3d const> T(T_raw);
            Eigen::Map<Eigen::Matrix<double,
                                     SE3d::num_parameters,
                                     SE3d::DoF,
                                     Eigen::RowMajor>>jacobian(jacobian_raw);
            jacobian = T.Dx_this_mul_exp_x_at_0();
            return true;
        }

        virtual int GlobalSize() const { return SE3d::num_parameters; }

        virtual int LocalSize() const { return SE3d::DoF; }
};

Setting Up Ceres Problem

The following code snippet shows how to set up the ceres::Problem with the cost functor and local parameterization descibed above.

double angle(0);
Eigen::Vector3d axis;
axis << 0,0,0;
Eigen::AngleAxisd aa(angle,axis.normalized());
Eigen::Quaterniond q(aa);

Eigen::Vector3d t;
t << 0,0,0;
Sophus::SE3d T(q,t);

ceres::Problem problem;
problem.AddParameterBlock(T.data(),
                            Sophus::SE3d::num_parameters,
                            new LocalParameterizationSE3);
for(uint32_t i=0; i<N; i++){
    Vector3d target = targetPoints.col(i);
    Vector3d input = sourcePoints.col(i);
    ceres::CostFunction* cost_function =
        new ceres::AutoDiffCostFunction<CostFunctor,
                                  3,                     // number of residual
                                  Sophus::SE3d::num_parameters   // number of parameter for first parameter block
                                >(new CostFunctor(target, input));
    problem.AddResidualBlock(cost_function, NULL,T.data());
}

References

  1. ceres-solver http://ceres-solver.org/nnls_modeling.html
